Cable Resin

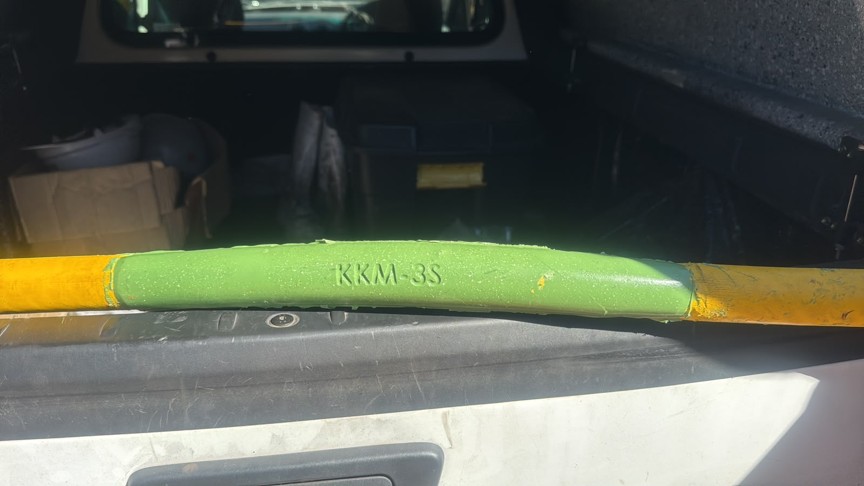

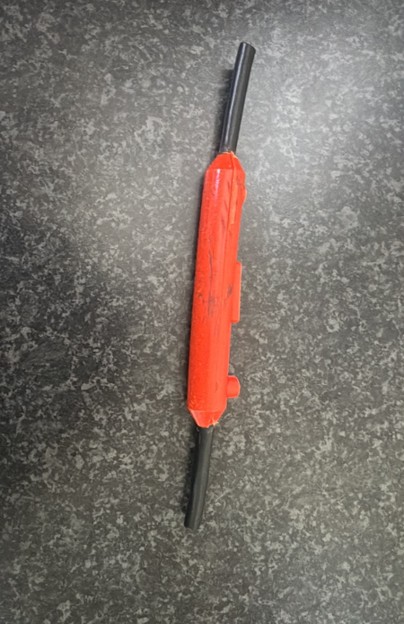

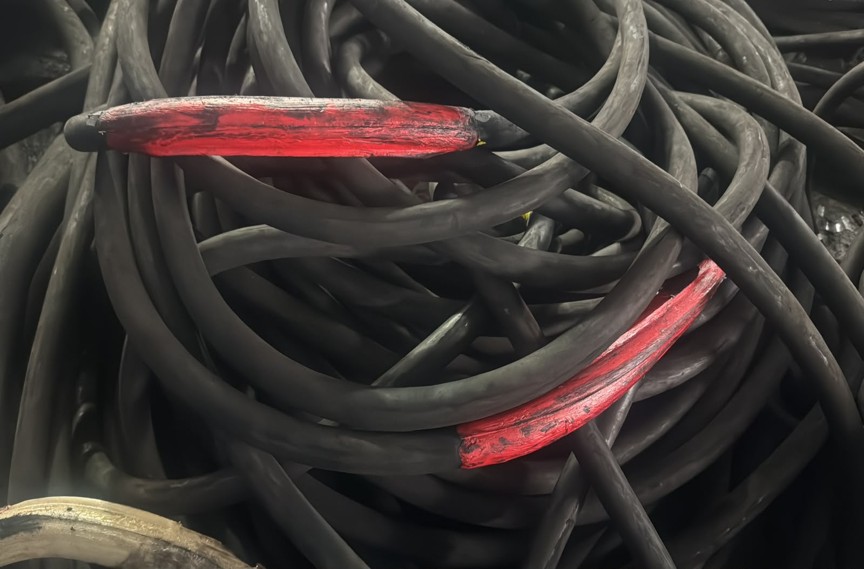

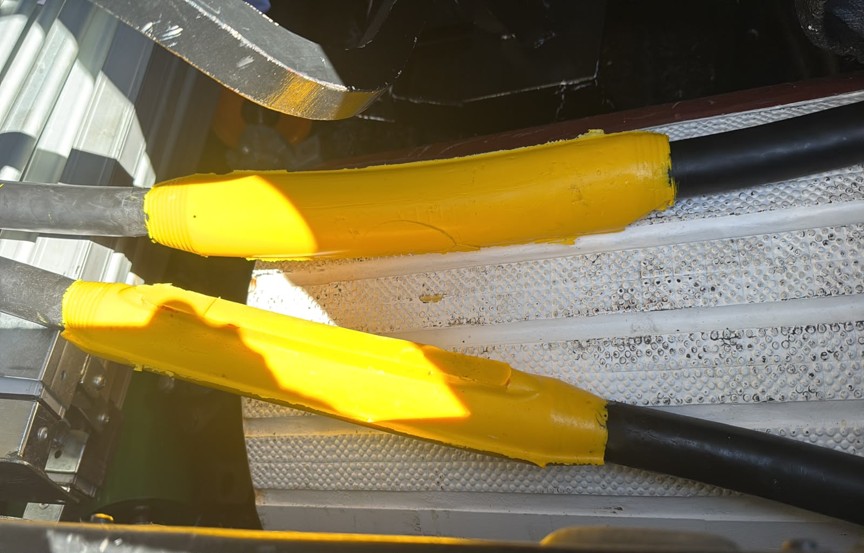

Flexable Resin Cable Joint

Our professional resin system is a heavy-duty solution designed for demanding cable joint applications. It delivers high strength, strong impact, and abrasion resistance, ensuring long-term durability in extreme environments.

This two-part polyurethane resin is specially formulated for durable and reliable electrical cable jointing applications. Packaged in a convenient, sealed foil pack, it ensures easy mixing, fast curing, and consistent performance across various environments.

Technical Features and Specifications

Resin Type Two-Part Polyurethane
Hardness 65–70 Shore A
Gel Time ~10 minutes 20°C
Demould Time ~30 -45 minutes 20°C
Abrasion Resistance Very Good
Chemical Safety No Hazardous or harmful chemicals
Colors Available Green, Yellow, Red
Packaging Pre-measured sealed foil pack 400/500g

Data Sheet

Key Features:

Heavy Duty: Designed for demanding cable joint applications.
Fast Curing Time: Begins to cure approximately 10 minutes after pouring @ +/- 20°C
Rapid Demolding: Mould can be safely removed after 30-45 minutes @ +/- 20°C
Hardness: 65–70 Shore A.
High Strength: Strong, impact resistant, and abrasion resistant finish
Safe Formula: Contains no harmful chemicals.

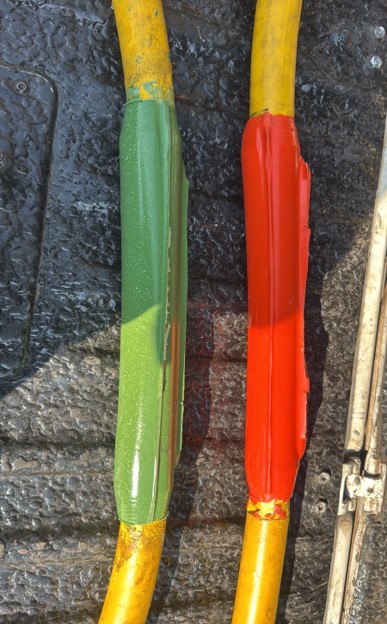

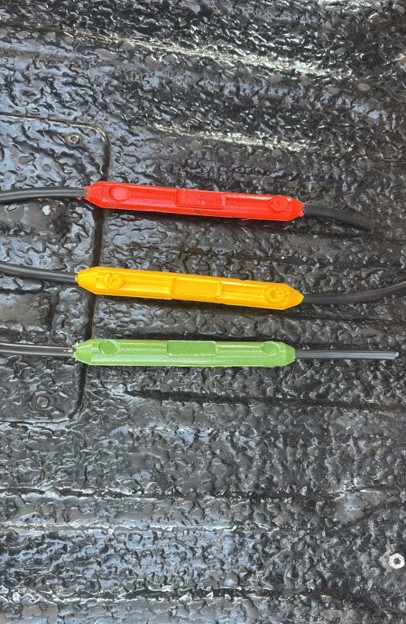

Color Options: Available in Green, Yellow, and Red.
Application Ready Packaging: Supplied in sealed foil packs for easy handling and long shelf life.

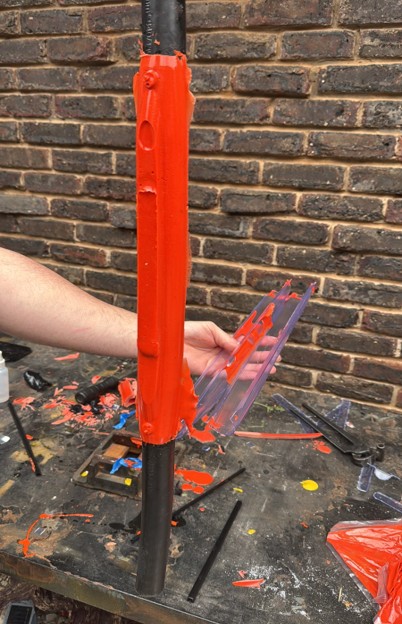

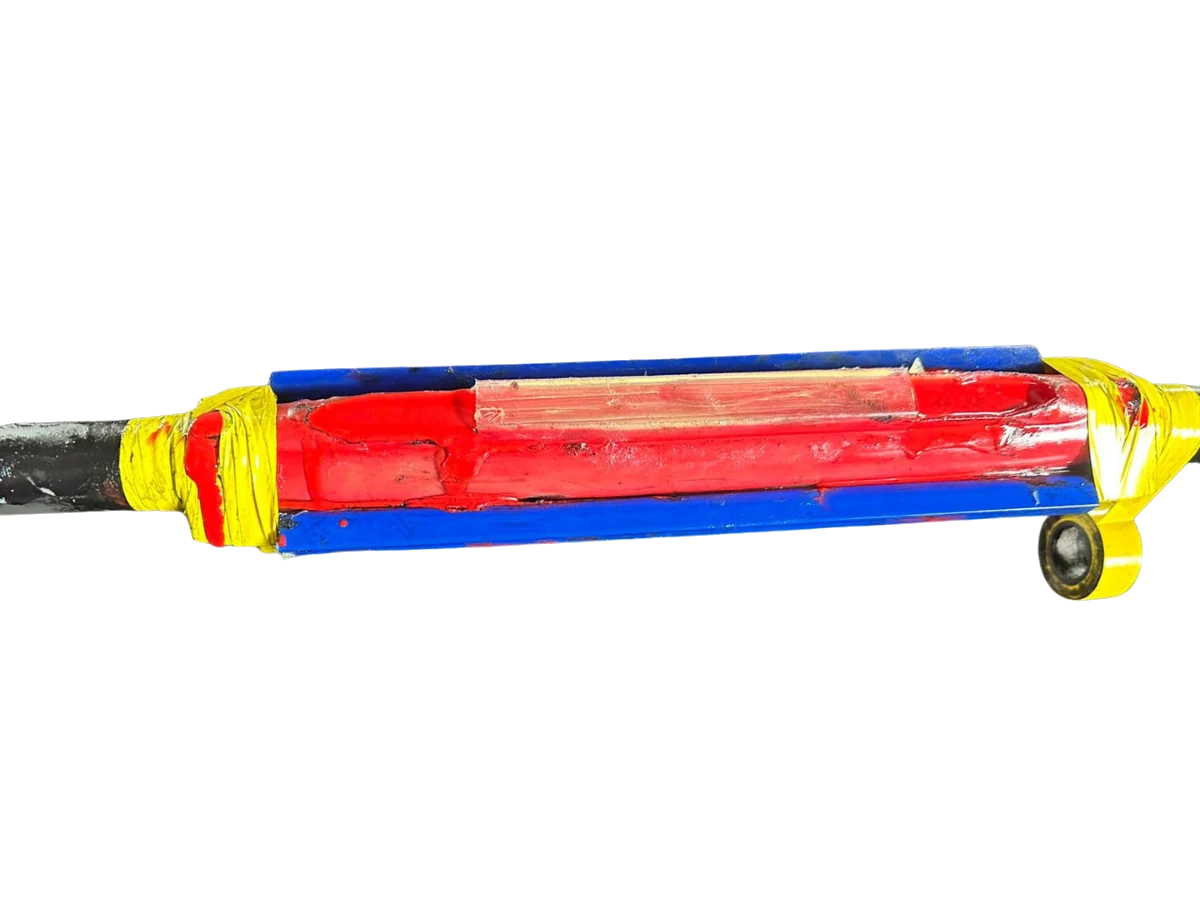

Mixing & Application Instructions:

Tear open the foil pack following the mixing direction indicated.
Knead the pouch thoroughly for 30–40 seconds, or until a noticeable exothermic warm-up occurs.
Once activated Cut the corner of the pack and pour resin into the prepared mould/joint immediately to prevent premature curing.
Allow to gel for approx. 10 minutes
Remove mould after 30-45 minutes
Actual gel time may vary depending on environmental conditions: lower temperatures will slow the reaction, while higher temperatures will accelerate curing time.

Temperature Rise & Load Considerations:

PU resin provides excellent thermal stability for low to medium voltage cable joints.
Resin must fully encapsulate conductors to allow even heatdissipation.

Storage & Shelf Life

Store in a cool, dry place away from direct sunlight.
Ideal storage temperature: 15–25°C.
Shelf life: 12 months when unopened.
